Heavy Copper Turnkey PCB Assembly 10mil

USD+0.01-10+per pcs
Heavy Copper Turnkey PCB Assembly 10mil
Features Gallery Product Description Request A Quote
Model Number: OEM/ODM/EMS
Place Of Origin:: Guangdong, China
Base Material:: FR-4
Surface Finishing:: HASL Lead Free
Layer: 1-40 Layer
Material:: FR4 TG130 - FR4 TG180
Copper Thickness:: 0.5-6oz
Board Thickness:: 0.3 Mm- 4 Mm
Min. Hole Size:: 0.1mm
Min. Line Width:: 3mil
Min. Line Spacing:: 3mil
Testing Service:: SPI,AOI ,functional Test
Service:: One-stop Turnkey Service
PCBA Service:: SMD SMT DIP Component Assembly
High Light:

Turnkey PCB Assembly Heavy Copper


Smt Circuit Board Heavy Copper


10mil Turnkey PCB Assembly

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: GW-PCBA
Certification: ISO9001, ISO14001, ROHS, CE
Model Number: Custom part number of each design
Payment & Shipping Terms
Packaging Details: Foam+Anti-static bags+cartons
Delivery Time: 2-3 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30000 Square Meter/Square Meters per Month module electronic board
Product Description

China PCB Circuit Board OEM/ODM Professional PCB Assembly Reliable Supplier

Basic Thing You Should Know About PCB Assembly Process

he world is growing at a very fast pace in terms of modern technology and the effects are easily on our daily lives. Our life style has changed greatly. This technological advancement has brought many advance equipment in the world that we did not imagine about 10 years ago. The core of these equipment is electronics engineering and the nucleus is the Printed Circuit Boards (PCBs).

The PCB is something that is usually green in color and is a rigid body that holds various electronic components on it. These components are soldered upon the PCBs in the process called “PCB Assembly” or PCBA. The PCB is composed of a substrate that is made of fiber glass, the components, the copper layer that makes the traces, holes in which components are fitted and layers that can be inner layer and outer layers. At RayPCB we can deliver up to 1-36 layers for multilayer PCB prototypes and 1-10 layers for multilayer PCBs for mass production. For single sided PCB and double sided PCBs, the outer layers present but no inner layer.

The pcb substrate and components are insulated with solder mask and held together with epoxy resin. This solder mask can be green, blue or red in color as commonly found in PCB colors. The solder mask will allow the components to avoid short circuit with tracks or other components.

The copper traces are used to carry electronic signals from one point to the other on the PCB. These signals can be high speed digital signals or discrete analog signals. These traces can be made thick to carry power / electricity to power up components.
In most of the PCBs which are made to supply high voltage or current, there is a separate plane of ground connection. The electronic components on top layer are connected to inner GND plane or inner signals layer by means of “Vias”.
The components are assembled on the PCB to allow the PCB to function as it is designed. The most important thing is the PCB functionality. The PCB may not work.

Products Description

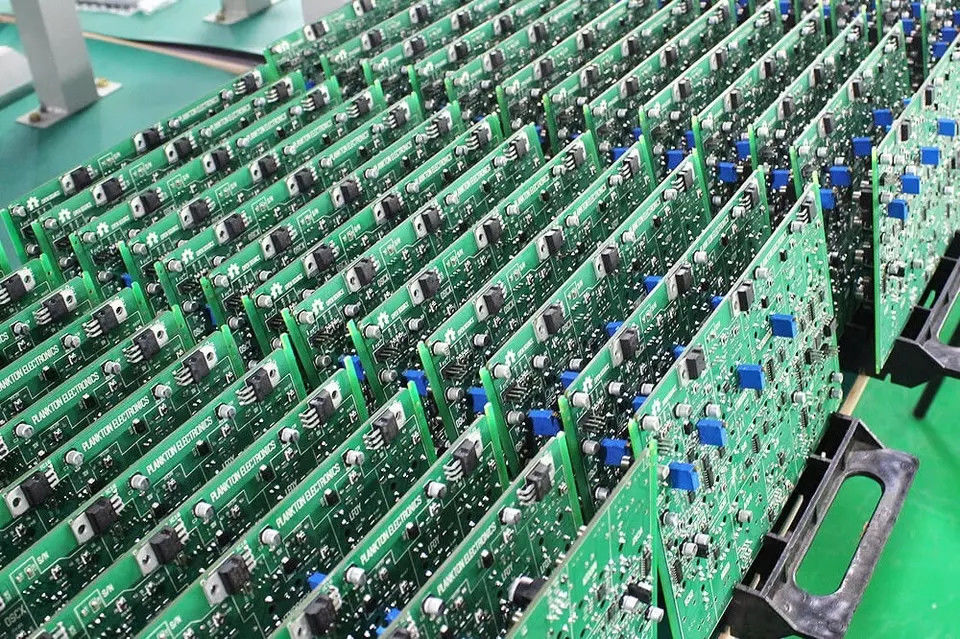

Heavy Copper Turnkey PCB Assembly 10mil 0

Our advantage

Heavy Copper Turnkey PCB Assembly 10mil 1

Service value

Independent quotation system to quickly serve the market


PCB manufacturing

High-tech PCB and PCB assembly production line


Material purchasing

A team of experienced electronic component procurement engineers


SMT post soldering

Dust-free workshop, high-end SMT patch processing

Our Services

1. PCB fabrication.

2. Turnkey PCBA: PCB+components sourcing+SMD and through-hole assembly

3. PCB clone, PCB reverse engineering.
Heavy Copper Turnkey PCB Assembly 10mil 2
PCB or PCBA Files Requests:

1. Gerber files of the bare PCB board
2. BOM (Bill of material) for assembly (please kindly advise us if there is any acceptablecomponents substitution.)
3. Testing Guide & Test Fixtures if necessary
4. Programming files & Programming tool if necessary
5. Schematic if necessary


Company Information

Global Well Electronic Inc. is a professional PCB solution supplier from Shenzhen, China, integrating PCB circuit board production and processing, STM processing and mounting, PCBA OEM, component purchasing, PCB/PCBA custom design-production- A comprehensive PCB circuit board company with one-stop turnkey service of processing-assembly-finished products. The company has a strong supply chain system, a professional and efficient collaborative team, a sound and complete quality control system, and the business philosophy of honesty and trustworthiness, customer first, and presents the products to everyone with low prices, reliable quality, high-quality service and after-sales service. client.

We provide total PCB solutions from PCB design to final mass production, including PCB fabrication and assembly, component sourcing, solder paste stencils, conformal coatings, and more. Serving the global electronics field, including industrial control, medical electronics, military equipment, power communication, automotive electronics, AI artificial intelligence, smart home and other industries.

Heavy Copper Turnkey PCB Assembly 10mil 3

Heavy Copper Turnkey PCB Assembly 10mil 4

Our factory located in Shenzhen, and have almost 300 employees, more than 30 production lines include SMT, DIP, automatic welding, aging test and assembly. We have SMT machines from Japan and Korea, automatic solder paste printing machines, solder paste inspection machine(SPI)12 temperature zone reflow soldering machine, AOI detector, X-RAY detector, wave soldering machine, EM PCB ,dispenser,laser print machine etc., Different line configurations can meet requirements from small sample order to bulk shipment.

Our company has obtained ISO 9001 quality system certification and ISO 14001 system certification. With multi-testingprocedures, our products carry out the quality system standard strictly.

Main Equipment:

Heavy Copper Turnkey PCB Assembly 10mil 5

Heavy Copper Turnkey PCB Assembly 10mil 6

Heavy Copper Turnkey PCB Assembly 10mil 7


Company Capabilities

(1) PCB Technical Specification

Order Quantity 1-300,000,30000 Square Meter/Square Meters per Month module electronic board
Layer 1,2,4,6,upto 40 layer
Material FR-4,glass epoxy,FR4 High Tg,Rohs compliant,Aluminum,Rogers,etc
PCB type Rigid,flexible,rigid-flexible
Shape Any shape: Rectangular,round,slots,cutouts,complex,irregular
Max PCB dimensions 20inch*20inch or 500mm*500mm
Thickness 0.2~4.0mm, Flex 0.01~0.25''
Thickness tolerance ± 10%
Copper thickness 0.5-4 oz
Copper thickness tolerance ± 0.25oz
Surface finish HASL,Nickle,Imm Gold,Imm Tin,Imm Silver,OSP etc
Solder mask Green, red,white,yellow,blue,black, Double-sided
Silk screen White,yellow,black,or negative, Double-sided or single-sided
Silk screen min line width 0.006'' or 0.15mm
Min drill hole diameter 0.01'',0.25mm.or 10 mil
Min trace/gap 0.075mm or 3mil
PCB cutting Shear,V-score,tab-routed

(2) Turnkey PCBA Capabilities

Turnkey PCBA PCB+components sourcing+assembly+package
Assembly details SMT and Thru-hole, ISO lines
Lead Time Prototype: 15 work days. Mass order: 20~25 work days
Testing on products Flying Probe Test, X-ray Inspection, AOI Test, functional test
Quantity Min quantity: 1pcs. Prototype, small order, mass order, all OK
Files we need PCB: Gerber files(CAM, PCB, PCBDOC)
Components: Bill of Materials(BOM list)
Assembly: Pick-N-Place file
PCB panel Size Min size: 0.25*0.25 inches(6*6mm)
Max size: 20*20 inches(500*500mm)
PCB Solder Type Water Soluble Solder Paste, RoHS lead free
Components details Passive Down to 0201 size
Leadless Chip Carriers/CSP
Double-sided SMT Assembly
Fine Pitch to 0.8mils
BGA Repair and Reball
Part Removal and Replacement
Component package Cut Tape,Tube,Reels,Loose Parts
PCBA process


Stripping-----Punching-----Electrical Testing-----SMT-----Wave

Soldering-----Assembling-----ICT-----Function Testing-----Temperature - Humidity Testing

PCB&PCBA Products Show

Heavy Copper Turnkey PCB Assembly 10mil 8


Heavy Copper Turnkey PCB Assembly 10mil 9

Packaging & Shipping

Packing details:

PCBA are packed into plastic bags. Plastic bags are put into small carton. 4 small carton into a big carton.

A big carton: 35×32×40 cm size.

Shipping Express:

FedEx, DHL, UPS, TNT, EMS, private lines, etc.

Air freight, Sea shipping

Heavy Copper Turnkey PCB Assembly 10mil 10

If you need help on PCB layout, you can contact us and send the board to us. We also provide Reverse Engineering Service.

We have been providing PCB Manufacture for many years in China,and we have rich experience in product production and product assembly.We believe our team will provide high quality and low cost service for you.

Thank you very much for all your support .

Best Regareds.
