94v0 Aluminum PCB with 1-3oz Copper Thickness and 0.1-3.0mm Board Thickness for LED PCB and FR4 PCBA
-
Highlight
94v0 Aluminum PCB
,1-3oz Copper Thickness LED PCB
,0.1-3.0mm Board Thickness FR4 PCBA
-
Base Material94v0 Aluminum PCB
-
Copper Thickness1-3oz
-
Board Thickness0.1-3.0mm
-
Min Hole Size0.3mm
-
Min Line Width0.2mm
-
Min Line Spacing0.2mm
-
Surface FinishingHASL OSP ENIG
-
Solder MaskGreen Blue Red Black White
-
Number Of Layers1-12 Layers
-
Finished Thickness0.1mm-4.0mm
-
Board Thickness Tolerance±10%
-
Copper Plating Hole18-40 Um
-
Impedance Control±10%
-
Warp & Twist0.70%
-
Min Trace Width0.075mm
-
Place of OriginGuangdong, China
-
Brand NameHS
-
Model NumberHS pcb manufacturer
-
Minimum Order Quantity2
-
Price$3

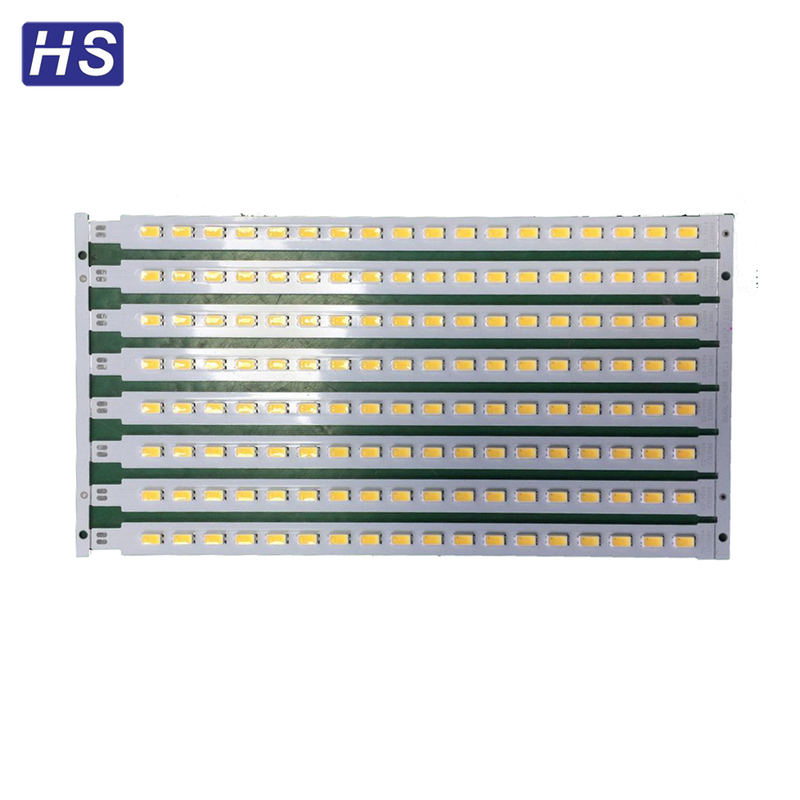

94v0 Aluminum PCB with 1-3oz Copper Thickness and 0.1-3.0mm Board Thickness for LED PCB and FR4 PCBA
Shenzhen Aluminum Circuit Board PCB Factory
Our PCB Manufacturing Services
- 1-12 layer FR4 PCB production
- 1 layer Aluminum PCB manufacturing
- 1-4 layer Flexible PCB solutions
- 1-3oz copper thickness options
- 0.2mm hole size capability
- 0.1mm track width/space precision
- Complete SMT PCBA service
Frequently Asked Questions
Q: Can I have a sample to test?
A: Yes, we can send you samples to test.
Q: What specifications do you need for PCB quotation?
A: We need your PCB Gerber file, board thickness, copper thickness, surface finishing and quantity to quote you.
Q: What is the lead time?
A: Samples need 3-5 days, mass production needs 7-10 days, also according to the order volume.
Q: Do you have MOQ limit?
A: Even 1 piece, we care.
Q: Can you offer the best price for us?
A: Yes, we are specialized PCB manufacturer directly, we can offer lower price than any trading company.
Q: How do you ship the goods and how long does it take arrival?
A: We usually ship by DHL, UPS, FedEx and TNT. It takes 3-5 days to arrive.
Q: What are the payment terms?
A: You can pay us with Paypal, Western Union and T/T Bank.
Q: Can we visit your factory?
A: Yes, welcome to visit our factory anytime, and we will lead you to visit our factory and our production line.
Manufacturing Capability
| Item | Manufacture Capability |
|---|---|
| Material | FR-4/HiTg FR-4/Lead free Materials /CEM-3, Aluminium, Metal based |
| Layer No. | 1-12 |
| Finished board thickness | 0.1 mm-4.0mm (8 mil-150 mil) |
| Board Thickness Tolerance | ±10% |
| Cooper thickness | 0.5 OZ-3OZ (18 um-385 um) |
| Copper Plating Hole | 18-40 um |
| Impedance Control | ±10% |
| Warp&Twist | 0.70% |
| Peelable | 0.012" (0.3mm)-0.02" (0.5mm) |
| Min Trace Width | 0.075mm (3mil) |
| Min Space Width | 0.1mm (4 mil) |
| Min Annular Ring | 0.1mm (4 mil) |
| SMD Pitch | 0.2 mm (8 mil) |
| BGA Pitch | 0.2 mm (8 mil) |
| Min Solder Mask Dam | 0.0635 mm (2.5mil) |
| Solder mask Clearance | 0.1mm (4 mil) |
| Min SMT Pad spacing | 0.1mm (4 mil) |
| Solder Mask Thickness | 0.0007" (0.018mm) |
| Min Hole size (CNC) | 0.2 mm (8 mil) |
| Min Punch Hole Size | 0.9 mm (35 mil) |
| Hole Size Tolerance | PTH:±0.075mm; NPTH: ±0.05mm |
| Hole Position Tolerance | ±0.075mm |
| HASL | 2.5um |
| Lead free HASL | 2.5um |
| Immersion Gold | Nickel 3-7um Au:1-5u" |
| OSP | 0.2-0.5um |
| Panel Outline Tolerance | CNC: ±0.125mm, Punching: ±0.15mm |
| Beveling | 30° 45° |
| Gold Finger angle | 15° 30° 45° 60° |
| Certificate | ROHS, ISO9001:2008, SGS, UL certificate |
