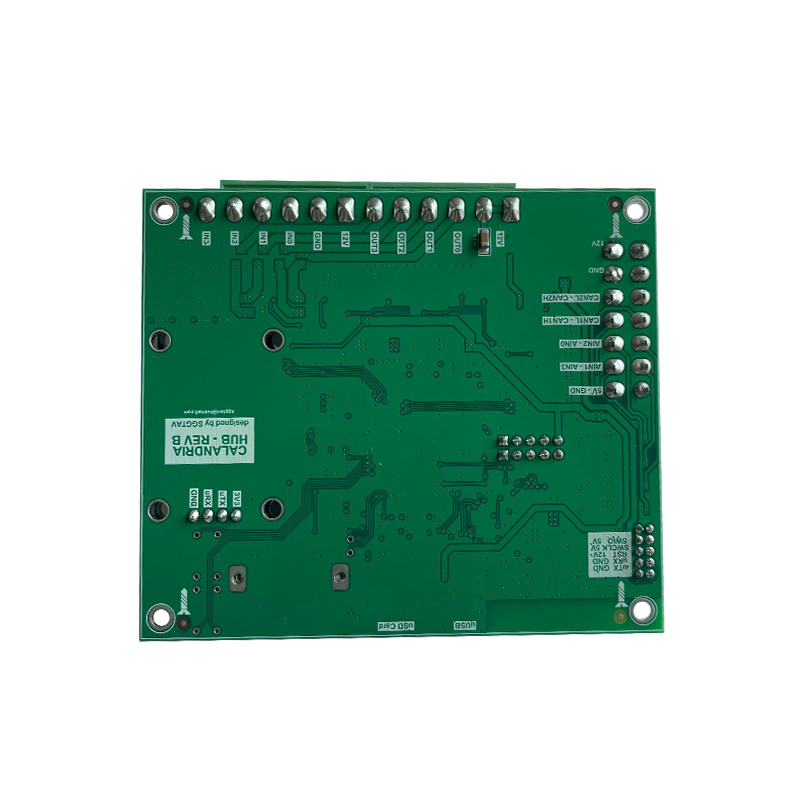

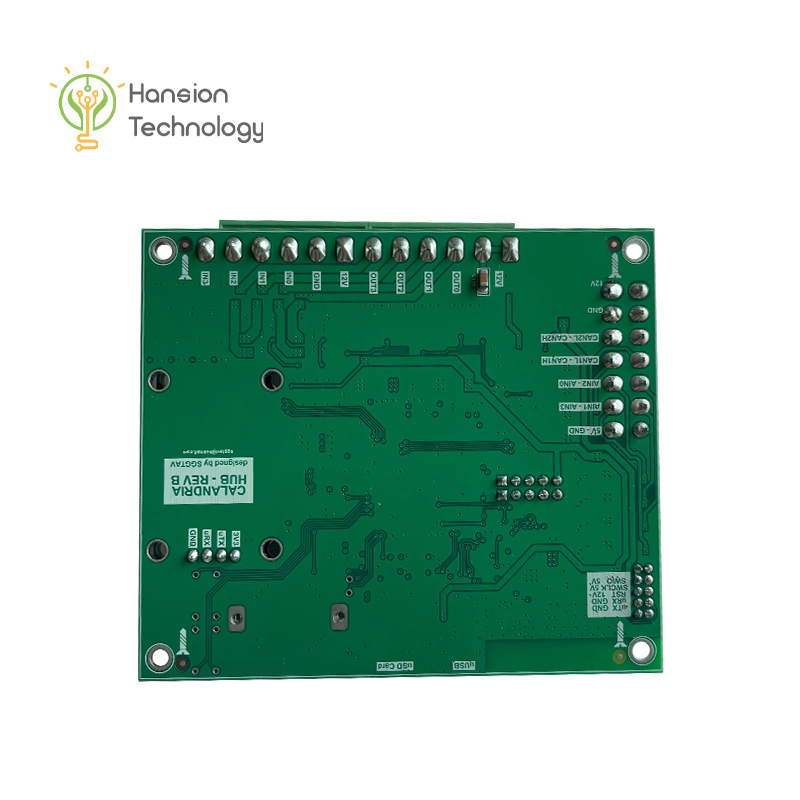

FR4 PCB Assembly with 0.4-2.0mm Board Thickness 0.3mm Min. Hole Size and 0.2mm Min. Line Width
-
Highlight
0.4-2.0mm Board Thickness FR4 PCB
,0.3mm Min. Hole Size PCB Assembly
,0.2mm Min. Line Width Printed Circuit Board
-
TypeRigid Pcb
-
Base MaterialFR4 Aluminum
-
Copper Thickness1-3oz
-
Board Thickness0.4-2.0mm
-
Min. Hole Size0.3mm
-
Min. Line Width0.2mm
-
Min. Line Spacing0.2mm
-
Surface FinishingHASL ENIG OSP
-
Number Of Layer1-2layer
-
Solder MaskWhite Black
-
Design ServiceAvailable
-
TestingFunction Testing
-
Component Sizes1206,0805,0603
-
Assembly TechnologySMT And DIP
-
Reflow SolderingNitrogen Gas
-
Place of OriginGuangdong, China
-
Brand NameHS
-
Model NumberCustomized
-
Minimum Order Quantity100
-
Price$18
FR4 PCB Assembly with 0.4-2.0mm Board Thickness 0.3mm Min. Hole Size and 0.2mm Min. Line Width
Smart Electronics OEM PCB Assembly One-stop Service FR4 PCB Manufacturing
Professional PCB manufacturing and assembly service with CE, ROHS, and ISO9001 certifications, backed by a 3-year warranty.
Product Specifications
| PCB Name | FR4 PCB | Warranty | 3 years |
|---|---|---|---|
| Solder Mask | White, Black | PCB Clone | Acceptable |
| Number of Layers | 1-2 layer | Other Services | SMT and DIP assembly |
PCB Assembly Capabilities & Advantages
- Professional surface-mounting and through-hole soldering technology
- Various component sizes supported (1206, 0805, 0603) with SMT technology
- Comprehensive testing including ICT (In-Circuit Test) and FCT (Functional Circuit Test)
- PCB Assembly with UL, CE, FCC, and Rohs approvals
- Nitrogen gas reflow soldering technology for SMT
- High standard SMT & solder assembly line
- High density interconnected board placement technology capacity
Product Images
