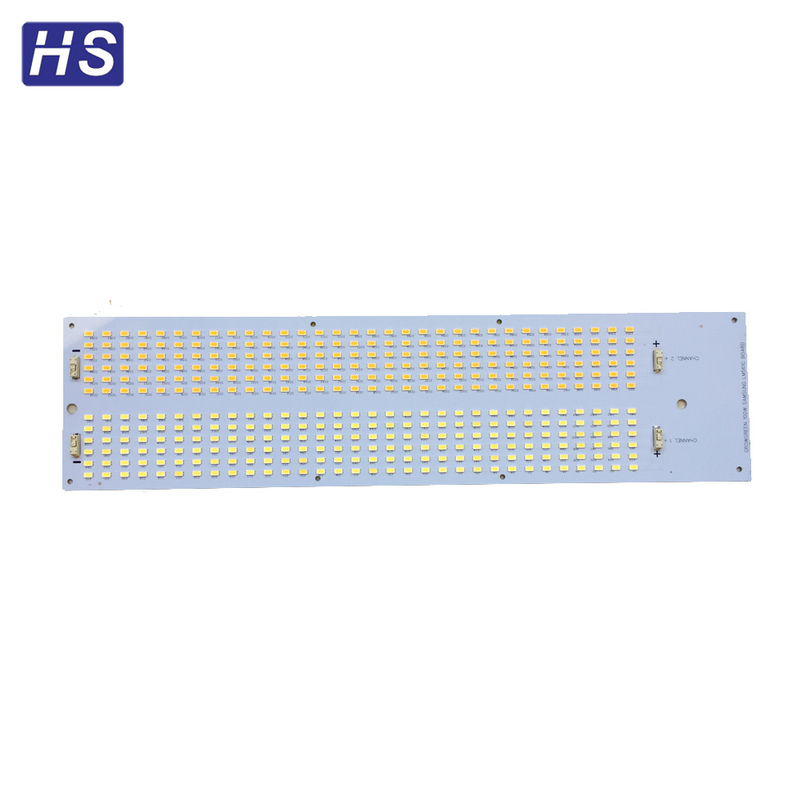

Aluminum PCB Metal Core PCB Board with 1oz Copper Thickness 1.6mm Board Thickness and 0.2mm Min. Hole Size

Aluminum PCB Metal Core PCB Board with 1oz Copper Thickness 1.6mm Board Thickness and 0.2mm Min. Hole Size

Products - Aluminum LED PCB
  • Highlight

    1oz Copper Thickness Aluminum PCB

    ,

    1.6mm Board Thickness Metal Core PCB

    ,

    0.2mm Min. Hole Size LED PCB

  • Type
    Rigid Pcb
  • Base Material
    Aluminum
  • Copper Thickness
    1oz
  • Board Thickness
    1.6mm
  • Min. Hole Size
    0.2mm
  • Min. Line Width
    0.2mm
  • Min. Line Spacing
    0.2mm
  • Surface Finishing
    HASL
  • Number Of Layer
    2layer
  • Solder Mask
    Green
  • Max Board Size
    500x1500mm
  • Board Outline Tolerance
    ±0.15
  • Thickness Tolerance
    ±5%
  • Impedance Control Tolerance
    ±10%
  • Lead Time
    3-5 Days (samples), 7-10 Days (mass Production)
  • Place of Origin
    Guangdong, China
  • Brand Name
    HS
  • Model Number
    Customized
  • Minimum Order Quantity
    5
  • Price
    $11-12

Aluminum PCB Metal Core PCB Board with 1oz Copper Thickness 1.6mm Board Thickness and 0.2mm Min. Hole Size

  • Aluminum PCB Metal Core PCB Board with 1oz Copper Thickness 1.6mm Board Thickness and 0.2mm Min. Hole Size
Get Price Contact Now
Aluminum PCB Metal Core PCB Board
Aluminum PCB Metal Core PCB Board with 1oz Copper Thickness 1.6mm Board Thickness and 0.2mm Min. Hole Size 0
Aluminum PCB Metal Core PCB Board with 1oz Copper Thickness 1.6mm Board Thickness and 0.2mm Min. Hole Size 1
Aluminum PCB Metal Core PCB Board with 1oz Copper Thickness 1.6mm Board Thickness and 0.2mm Min. Hole Size 2
Aluminum PCB Metal Core PCB Board with 1oz Copper Thickness 1.6mm Board Thickness and 0.2mm Min. Hole Size 3
Production Capabilities
Item Specification
Layer 1Layer-10Layer
Base Material FR4, Aluminium, Copper core
Material Suppliers KINGBOARD(KB), GUOJI(GDM), SHENYI etc.
Board Thickness(mm) 0.40, 0.60, 0.80, 1.00, 1.20, 1.60, 2.00, 3.0
Max board size 500x1500mm
Board Outline Tolerance ±0.15
Thickness Tolerance ±5%
Mini Track Space 0.2mm
Mini Track Width 0.2mm
Mini Hole Size 0.2mm
Copper Thickness 18um, 35um, 70um, 105um
Impedance Control Tolerance ±10%
Surface Finishing HASL, OSP, ENIG
Solder Mask Color Green, Blue, White, Black, Yellow, Red
Certificates CE ROHS UL
Aluminum PCB Metal Core PCB Board with 1oz Copper Thickness 1.6mm Board Thickness and 0.2mm Min. Hole Size 4
Aluminum PCB Metal Core PCB Board with 1oz Copper Thickness 1.6mm Board Thickness and 0.2mm Min. Hole Size 5
Aluminum PCB Metal Core PCB Board with 1oz Copper Thickness 1.6mm Board Thickness and 0.2mm Min. Hole Size 6
Aluminum PCB Metal Core PCB Board with 1oz Copper Thickness 1.6mm Board Thickness and 0.2mm Min. Hole Size 7
Aluminum PCB Metal Core PCB Board with 1oz Copper Thickness 1.6mm Board Thickness and 0.2mm Min. Hole Size 8
Frequently Asked Questions
1. Can I have a sample to test?
Yes, we can send you samples to test.
2. What specifications do you need for PCB quotation?
We need your PCB Gerber file, board thickness, copper thickness, surface finishing and quantity to quote you.
3. What is the lead time?
Samples need 3-5 days, mass production needs 7-10 days, also according to the order volume.
4. Do you have MOQ limit?
Even 1 pc, we care.
5. Can you offer the best price for us?
Yes, we are specialized PCB manufacturer directly, we can offer lower price than any trading company.
6. How do you ship the goods and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx and TNT. It takes 3-5 days to arrive.
7. What are the payment terms?
You can pay us with Paypal, Western Union and T/T Bank.
8. Can we visit your factory?
Yes, welcome to visit our factory anytime, and we will lead you to visit our factory and our production line.
