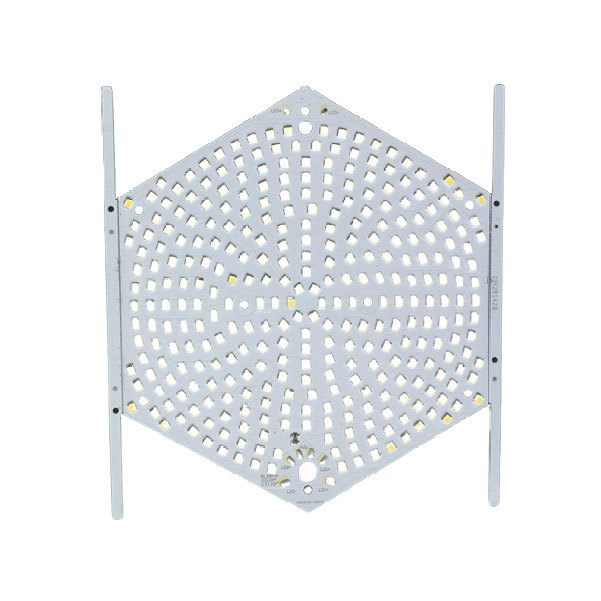

Customized aluminum PCB Circuit Board for LED indoor lighting

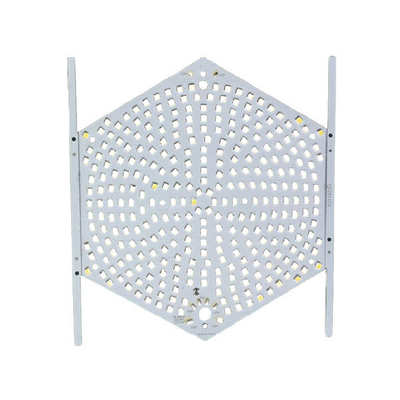

Customized aluminum PCB Circuit Board for LED indoor lighting

Products - Aluminum LED PCB
  • Silk Screen
    White,black,yellow
  • Type
    LED
  • Thichkness
    1.5mm
  • Soldermask Color
    Green/ White/ Black/ Blue/ Yellow
  • Size
    Customizable
  • Surface Finishes
    HASL, Immersion Gold
  • Min. Line Width/Spacing
    0.1mm
  • Pcb Clone
    Acceptable
  • Copper Thickness
    1-3oz
  • Pcb Design
    Available
  • Place of Origin
    guangdong
  • Brand Name
    Hansion
  • Certification
    CE
  • Model Number
    HS-aluminum led pcb
  • Minimum Order Quantity
    1PCS
  • Price
    USD 3-4U/PCS
  • Packaging Details
    Vacuum packaging+carton box
  • Delivery Time
    3-7 working day
  • Payment Terms
    L/C, D/A, T/T, Western Union
  • Supply Ability
    100000PCS PER 15DAYS

Customized aluminum PCB Circuit Board for LED indoor lighting

Get Price Contact Now
Specification Of Aluminum Substrate Plate: W/m.K
Item
Test Method
Units
Index
Insulation thickness
IPC-TM-650 2.2 18.1
PM
100
Thermal Stress
IPC-TM-650 2.4 13.1
S
288℃＞120S
Peel Strength
IPC-TM-650 2.4 8.1
N/mm
1.5
Withstand Voltage
DC
KV
Grinding Plate:1.2 Oxidation:1.5
Break-down Voltage
AC
KV
3
CTI
GB/T 4207
V
575
Glass Transition Temperature
IPC-TM-650 2.4 25
℃
130
CTE (TMA)
IPC-TM-650 2.4 24
%(50-260℃)
0.5
Surface Resistance
IPC-TM-650 2.6 17.1
MQ
4.18x103
Volume Resistance
IPC-TM-650 2.6 17.1
MQcm
3.27x107
Dielectric Constant 1MHZ
IPC-TM-650 2.6 5.9
/
/
Dissipation Factor 1MHZ
IPC-TM-650 2.6 5.9
/
/
Water Absorption
IPC-TM-650 2.6 2.1
%
＜0.5
Thermal Conductivity
ASTM E 1464
W/m-k
1.3
Heat Resistance
/
°C/W
0.7-0.9
Flammabiity
UL 94 Vertical Law
S

FAQ
Q1: What is your minimum order quantity?
A: One piece, or one PCB Panel.

Q2: What other Laminate Thickness options do i have?
A:0.3mm 0.4mm 0.6mm 0.8mm 1.0mm 1.2mm 2.0mm 2.4mm 3.0mm 3.2mm 4mm 6mm

Q3: What copper thickness options do i have?
A: We can offer 0.5 OZ, 1.0 Oz, 1.5 OZ, 2.0 OZ, 2.5 OZ, 3.0 OZ, and Heavy Copper PCB options at 3.5 OZ, 4.0 OZ, 4.5 OZ, and 5.0OZ.

Q4: What Solder Mask do you use for production?
A: We use green Liquid Photo Imageable (LPI) Solder mask for our PCB production.

Q5: What surface finish can i have?
A: HASL, Immersion Gold, Immersion Tin, Immersion Silver, OSP, Hard Gold, and Soft Gold, and more.

Q6: Do you provide SMT prototype boards?
A: Yes, we have the capabilities to fulfill any type of custom SMT prototype board requirements.

Q7: Do you accept the assembly of boards not produced by POE?
A: Yes, that's not a problem. However, we offer PCB manufacturing, component procurement, and PCB assembly in a continuous and smooth manner to save our customers' time and money.
