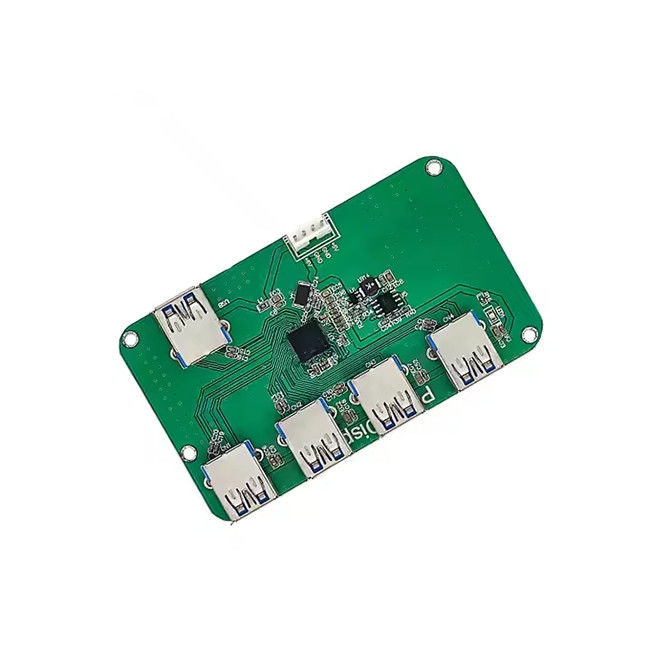

Customizable Electronic Pcb Design Double Sided TG130 Electronics Circuit Board

Customizable Electronic Pcb Design Double Sided TG130 Electronics Circuit Board

Products - FR4 PCBA
  • Highlight

    Customizable Electronic Pcb Design

    ,

    TG130 Electronics Circuit Board

    ,

    TG130 Electronic Pcb Design

  • Min. Trace Width/Spacing
    0.1mm/0.1mm
  • Application
    Consumer Electronics, Industrial Control, Medical Equipment, Automotive, Telecommunication
  • Copper Thickness
    0.5oz-6oz
  • Material
    FR4
  • Lead Time
    1-3 Weeks
  • Max. Panel Size
    600mm X 1200mm
  • Board Thickness
    0.2mm-7.0mm
  • Surface Finish
    HASL, ENIG, OSP, Immersion Silver, Immersion Tin
  • Min. Hole Size
    0.2mm
  • Brand Name
    Hansion
  • Model Number
    FR4 double side PCBA
  • Minimum Order Quantity
    1
  • Price
    5
  • Packaging Details
    foam+custom box
  • Delivery Time
    3-5days
  • Payment Terms
    Western Union,T/T
  • Supply Ability
    10000PCS per month

Customizable Electronic Pcb Design Double Sided TG130 Electronics Circuit Board

  • Customizable Electronic Pcb Design Double Sided TG130 Electronics Circuit Board
  • Customizable Electronic Pcb Design Double Sided TG130 Electronics Circuit Board
Get Price Contact Now

Custom electronic pcb design printer circuit board printer double sided TG130 electronics circuit board

Customizable Electronic Pcb Design Double Sided TG130 Electronics Circuit Board 0
Model Number
BLJ-PCB-01
Type
Multilayer Rigid PCB
Place of Origin
Shanghai, China
Number of Layers
≤ 20 layers
Base Material
FR4 / Aluminum / Ceramic CEM1 / Copper
Board Thickness
IPC-A-610G
Board Size
Custom Size
Copper Thickness
0.5~4oz
Min. Hole Size
0.1mm
Min. Line Width
0.075mm
Min. Line Space
0.075mm
Surface Finishing
Lead-free HASL / OSP / Immersion Gold / Immersion Ag
Quotation Document
Bill of Materials, Gerber Files, Pick&Place File(XYRS)



What can we do for PCB Assembly?
* We can supply free design for pcb board.

* Offering solution for PCBA board, like if you told us what type you will use for? if you can supply a schematic picture for us about your design thinking, and then our engineer will put forward related suggestion for you .

* OEM service for PCB, we can assembly finished poduction, produce bare board pcb, and then purchasing components, after that, we can assembly it, if you would like us to supply assembly housing, both are welcome, also, we can supply led driver, which means control the led pcb, a whole complete service can get from Hansion.

When you do not know any pcb specification, you may know below basic pcb specification for your choice:
Base material
Normal FR4, High Tg FR4, Aluminum, FPC......
Solder mask
Green, red, blue, white, yellow, purple, black,
Silk screen
White, yellow, black, ......
Silk screen min line width
0.006'' or 0.15mm
Surface treatment type
ENIG, OSP, HASL lead free
Max. layer-up(L)
50
Max. PCB dimensions(mm)
1500*500 (590.5''×196.8'')
Thickness(mm)
0.2-12.0mm, Flex 0.01~0.25''
Board thickness tolerance(mm)
±0.10
Copper thickness(oz)
0.5-4.0 oz
Copper thickness tolerance(oz)
± 0.25 oz
Profile size tolerance(mm)
±0.08
Min. drill hole diameter(mm)
0.25mm, 0.01'' or 10 mil
Min. trace/gap(mm)
0.075mm or 3 mil
PCB cutting
Shear, V-score, tab-routed

Design Work Show

Our engineering team will deeply analyze and evaluate each project for you, to choose the best LED chip, both in quality& price, This below led pcb is all our engineer design for other customer.
Our service including
1:One-stop ODM/OEM design services,
2:Plastics assembly and Mold making,
3:PCBA free function test,
4:Led PCB assembly
5:PCBA for 2 years warranty
6:Components Sourcing

Tags:

fr4 double sided pcb

fr4 printed circuit board

fr4 multilayer pcb
