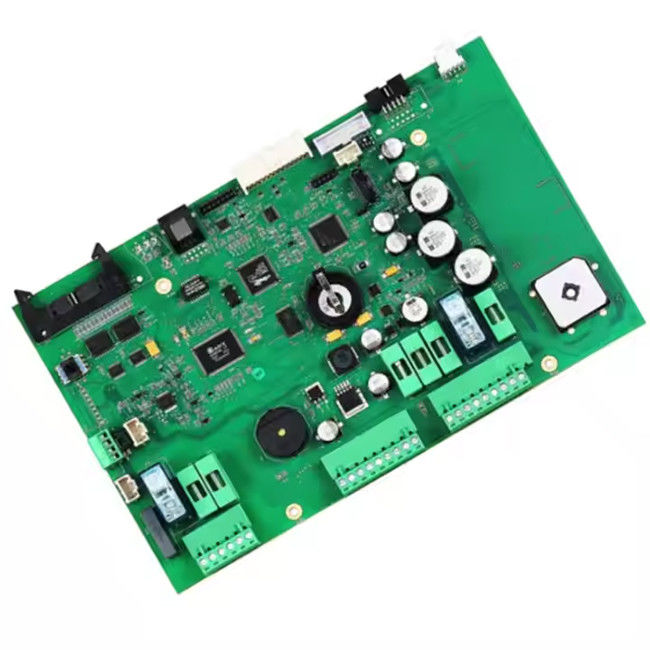

Customized FR4 PCBA Circuit Board Bluetooth Speaker PCBA Board Solution 0.2mm-7.0mm

Customized FR4 PCBA Circuit Board Bluetooth Speaker PCBA Board Solution 0.2mm-7.0mm

Products - FR4 PCBA
  • Highlight

    Customized FR4 PCBA

    ,

    Customized Bluetooth Speaker PCBA

    ,

    7.0mm Bluetooth Speaker PCBA

  • Min. Trace Width/Spacing
    0.1mm/0.1mm
  • Application
    Consumer Electronics, Industrial Control, Medical Equipment, Automotive, Telecommunication
  • Copper Thickness
    0.5oz-6oz
  • Material
    FR4
  • Lead Time
    1-3 Weeks
  • Max. Panel Size
    600mm X 1200mm
  • Board Thickness
    0.2mm-7.0mm
  • Surface Finish
    HASL, ENIG, OSP, Immersion Silver, Immersion Tin
  • Min. Hole Size
    0.2mm
  • Brand Name
    Hansion
  • Model Number
    FR4 double side PCBA
  • Minimum Order Quantity
    1
  • Price
    5
  • Packaging Details
    foam+custom box
  • Delivery Time
    3-5days
  • Payment Terms
    Western Union,T/T
  • Supply Ability
    10000PCS per month

Customized FR4 PCBA Circuit Board Bluetooth Speaker PCBA Board Solution 0.2mm-7.0mm

  • Customized FR4 PCBA Circuit Board Bluetooth Speaker PCBA Board Solution 0.2mm-7.0mm
  • Customized FR4 PCBA Circuit Board Bluetooth Speaker PCBA Board Solution 0.2mm-7.0mm
Get Price Contact Now
Specification
Hardware Parameters
Chip Type
Marvell 88F3720
ARM A53 Dual-core 1Ghz
RAM
1G
Storage
4G
Physical Parameters
Size
148*239.8*26mm
Weight
760g
Reset
Support
Electrostatic protection
Support
Power Parameters
Power Input
12V
Power Consumption
<24W
Environmental Parameters
Operating temperature / Storage temperature
0 to 50 / - 40-70 degrees
Operating humidity / Storage humidity
5%-95% non-condensing
Protection Grade
IP41
 Interface Parameters
Electrical interface
5*GE(1*Combo)
LTE interface
Support
Console interface
Support
Extension ports
USB 2.0
Internet Function
DHCP server/client
Support
Static routing
Support
Dynamic routing ospf
Support
Vlan sub-interface
Support
Vxlan
Support
IPsec
Support
Security Mechanism
Firewall
Support
Domain name Black / white list
Support
Flow control
Qos flow control
Support
Service quality
Primary / Secondy links
Support
Primary / Secondy device
Support
WAN / LAN switching
Support
Wireless Access
Wifi 2.4
Support
4G
Support
Forward capacity
Throughput
1G
IPsec
100Mbps

Layer count
1-28L,HDI

Material
FR-4, High TG FR4, aluminium, FPC
Teflon,PTFE (F4B,F4BK), Rogers (4003,4350,5880)
Max board dimensions
800mm*620mm
Board shape
Rectangular,round,slots,cutouts,complex,irregular
Board type
Rigid,flexible,rigid-flexible
Board cutting
Shear,V-score,tab-routed,counter sunk
Board thickness
0.2~8.0mm, Flex 0.1~0.25mm
Thickness Tolerance
±10%
Min line width / space
3mil/3mil
Minimum Drilling Hole (Mechanical)
0.1mm
Minimum laser hole
0.075mm
Blind Hole/buried plate
YES

Hole Position/hole Tolerance
PTH:±0.076MM
NPTH:±0.05mm
InnerLayer Copper Thickness
0.5-3 oz
OutLayer Copper Thickness
0.5-4 oz
Impedance control tolerance
±10%
Surface finish
HASL,Lead free HASL,ENIG,Immersion Tin,Immersion Silver,OSP...
Solder mask
Double-sided green,red,white,blue,black,etc
Silkscreen
Double-sided or single-sided in white,black,or negative
PCB Testing
E-test, Flying probe test
Acceptable File Format
Gerber RS-274X,274D,AutoCAD'S DXF,DWG,Pro-E,Ki-CAD
Quality Standards
IPC-A-600F and MIL-STD-105D CHINA GB<4588>

Quality test:



AOI Test
Checks for solder paste
Checks for components down to 0201"
Checks for missing components, offset, incorrect parts, polarity



X-Ray Inspection
X-Ray provides high-resolution inspection
BGAs
Micro BGAs
Chip scale packages
Bare boards


 Power-up Test
 Advanced Function Test
 Flash Device Programming
 Functional testing



FAQ:

Q1: Do you have a price list?
A: We are OEM Manufacturer. We produce products per Customer’s designs and instructions. Hence we don’t have a price list.

Q2: What’s your MOQ for PCB, PCBA?
A: No MOQ for PCB and PCBA. We can do prototype and mass production as well.

Q3: What is needed for PCB & PCBA quotation?
A: PCB: Quantity,Gerber file and technic requirements( board material, board size, surface finish treatment, copper thickness, board thickness).PCBA: PCB information,BOM,Testing documents.

Q4: Can you procure all parts in BOM for us?
A: YES, we can source all parts as per your bom list required.
