1.6mm Customized 94v0 Aluminium LED PCB Board For Star LED PCBA

Products - Aluminum LED PCB

Highlight

1.6mm Aluminium LED PCB Board
,
94v0 Aluminium LED PCB Board
,
Customized aluminum led pcb board
Surface Finishing

HASL ENIG OSP
Design Service

Available
Testing

Function Testing
Delivery

DHL FedEx UPS
Other Service

SMT And DIP Assembly
PCB Clone

Acceptable
Copper Thickness

1oz
Sample Testing

Available
Place of Origin

Guangdong, China
Brand Name

HS
Model Number

Customized
Minimum Order Quantity

1
Price

10USD/PCS
Packaging Details

BOX+foam
Payment Terms

T/T,Western Union,MoneyGram
Supply Ability

20000 square meters per month

1.6mm Customized 94v0 Aluminium LED PCB Board For Star LED PCBA

Name: 1.6mm Customized 94v0 Aluminium LED PCB Board For Star LED PCBA
Brand: Shenzhen Hansion Technology Co., Ltd.
SKU: Customized
Price: 10 USD
Availability: InStock

button button

Get Price Contact Now

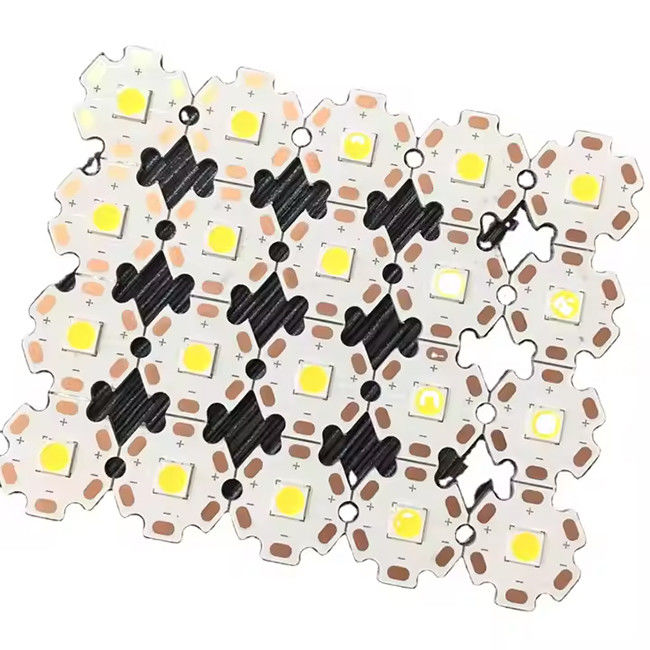

1.6mm customized Aluminium 94v0 LED pcb board for star LED PCBA

Technical parameters and process capability of metal substarte(MCPCB)
ITEM	SPECIFICATION
Surface	LF HASL,immersion gold,immersion siliver,OSP
Layer	Single side,double sided Multilayer and special structure
Maximum PCB size	240mmx1490mm OR 490x1190mm
PCB thickness	0.4-3.0mm
Copper Foil thickness	H 1/2/3/4(oz)
Insulation layer thickness	50/75/100/125/150/175/200(um)
Metal Base thickness	AIuminum(1100/3003/5052/6061),Copper AIuminum
Metal Base thickness	0.5/0.8/1.0/1.2/1.6/2.0/3.2/5.0(mm)
Shaping	Die punching/CNC Route/V-Cut
Test	100% open&short test
Shaping tolerance	Die Punching<+- 0.05mm,CNC Route<+-0.15mm,V-CUT Thick residue>+-0.15mm
Hole tolerance	+-0.5mm
Min.Hole DIameter	Single side 0.5/Double sided PTH0.3MM
Solder mask	green/white/black/red/yellow
Min.letter height	0.8mm
Min.line space	0.15mm
Min.letter width	0.15mm
Sile screen color	blue/white/black/red/yellow
Sopecial hole	Spot facing/cup hole/buried via hole/buried tank
File format	Gerber,Protel,PowerPCB,AutoCAD etc


			Type

			PNL size

			Copper Cladding

			Surface

			Materials

			LED Chip

			7390

			4*5/97*80*1.6mm

			35um /1OZ

			White

			Aluminum 1.0W/mK

			XML/5050

			7391

			4*5/97*80*1.6mm

			35um /1OZ

			White

			Aluminum 1.0W/mK

			XP/3535

			5130

			4*5/97*80*1.6mm

			35um /1OZ

			White

			Aluminum 1.0W/mK

			XP/3535

			1677

			4*5/97*80*1.6mm

			35um /1OZ

			White

			Aluminum 1.0W/mK

			XP/3535

			10166

			4*5/97*80*1.6mm

			35um /1OZ

			White

			Aluminum 1.0W/mK

			XP/3535

			2055

			4*5/97*80*1.6mm

			35um /1OZ

			White

			Aluminum 1.0W/mK

			XP/3535

			6588

			4*5/97*80*1.6mm

			35um /1OZ

			Black

			Aluminum 1.0W/mK

			High power1W

			8165

			4*5/110*93*1.6mm

			35um /1OZ

			White

			Aluminum 1.0W/mK

			XRE

			8658

			4*5/110*93*1.6mm

			35um /1OZ

			White

			Aluminum 1.0W/mK

			3030

			4595

			4*5/110*93*1.6mm

			35um /1OZ

			Black

			Aluminum 1.0W/mK

			XP/3535

			13110

			4*5/110*93*1.6mm

			35um /1OZ

			Black

			Aluminum 2.0W/mK

			5050/RGBW

			7714

			4*5/110*93*1.6mm

			35um /1OZ

			White

			Aluminum 1.0W/mK

			XBD/2525

			6932

			4*5/110*93*1.6mm

			35um /1OZ

			White

			Aluminum 1.0W/mK

			XBD/2525

			6692

			4*5/110*93*1.6mm

			35um /1OZ

			White

			Aluminum 1.0W/mK

			XBD/2525

			7392

			4*5/110*93*1.6mm

			35um /1OZ

			White

			Aluminum 1.0W/mK

			XRE

			8804

			4*5/110*93*1.6mm

			35um /1OZ

			White

			Aluminum 1.0W/mK

			MTG

			10074

			4*5/110*93*1.6mm

			35um /1OZ

			White

			Aluminum 1.0W/mK

			2835

			8658

			4*5/110*93*1.6mm

			35um /1OZ

			White

			Aluminum 1.0W/mK

			3030
