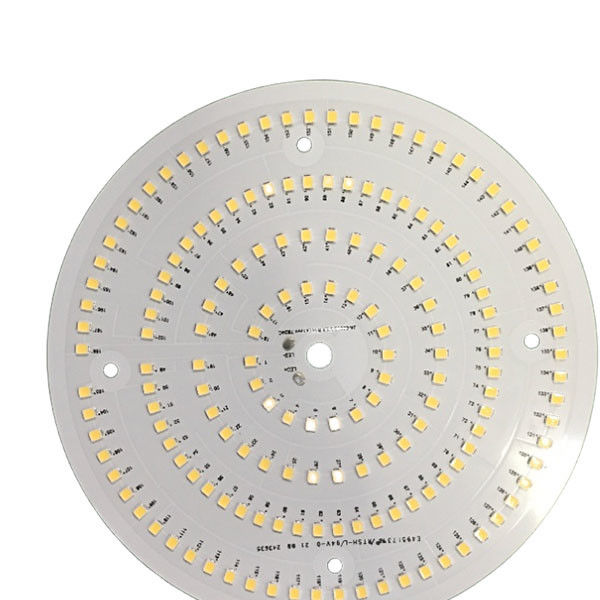

Aluminum LED PCB The Perfect Solution For Durable And Long-Lasting Lighting Solutions

Aluminum LED PCB The Perfect Solution For Durable And Long-Lasting Lighting Solutions

Products - Aluminum LED PCB
  • Highlight

    Durable Aluminum LED PCB

    ,

    Lighting Solutions Aluminum LED PCB

  • Thermal Resistance
    0.1-0.5°C/W
  • Silk Screen
    White,black,yellow
  • Type
    LED
  • Thichkness
    1.5mm
  • Soldermask Color
    Green/ White/ Black/ Blue/ Yellow
  • Copper Thickness
    1-3oz
  • Surface Finishes
    OSP, HASL, HASL Lf, Immersion Gold, Etc.
  • Min. Line Width/Spacing
    0.1mm
  • Place of Origin
    China
  • Brand Name
    Hansion
  • Minimum Order Quantity
    1
  • Price
    2.5
  • Packaging Details
    customized carton box
  • Delivery Time
    3-5 working days
  • Payment Terms
    T/T,Western Union,MoneyGram
  • Supply Ability
    10000 square meters per month

Aluminum LED PCB The Perfect Solution For Durable And Long-Lasting Lighting Solutions

  • Aluminum LED PCB The Perfect Solution For Durable And Long-Lasting Lighting Solutions
  • Aluminum LED PCB The Perfect Solution For Durable And Long-Lasting Lighting Solutions
Get Price Contact Now

Aluminum LED PCB The Perfect Solution for Durable and Long-Lasting Lighting Solutions






Detail Specifications:



 Layers  1
 Material  Aluminum
 Board Thickness  1.6mm
 Copper Thickness  1oz
 Surface Treatment  ENIG 1U"
 Soldmask & Silkscreen  White & White
 Quality Standard  IPC Class 2, 100% E-testing
 Certificates  TS16949, ISO9001, UL, RoHS







What Hansion Circuit can do for you:



  • PCB & PCBA Design
  • PCB manufacturing (prototype, small to medium, mass production)
  • Components Sourcing
  • PCB Assembly/SMT/DIP




To get a full quotation of the PCB/PCBA, pls provide the information as below:



  • Gerber File, with detail specification of the PCB
  • BOM List (Better with excel fomart)
  • Photoes of the PCBA (If you have done this PCBA before)




Company Informaiton:



Hansion is a professional PCB manufacturer from China since 2007, also provide PCB Assembly service for our customers. Now with about 300 employees. Certified with ISO9001,TS16949, UL, RoHS. We are confident to provide you quality products with factory-directed price within the fastest delivery time!





Manufacturer Capacity:




Capacity Double Sided: 12000 sq.m / month
Multilayers: 8000sq.m / month
Min Line Width/Gap 4/4 mil (1mil=0.0254mm)
Board Thickness 0.3~4.0mm
Layers 1~20 layers
Material FR-4, Aluminum, PI
Copper Thickness 0.5~4oz
Material Tg Tg140~Tg170
Max PCB Size 600*1200mm
Min Hole Size 0.2mm (+/- 0.025)
Surface Treatment HASL, ENIG, OSP







Tags:

aluminium led pcb board

led light circuit board

metal core led pcb
