Highlight
High Standard FR4 PCBA
,High Standard FR4 Circuit Board
-
Layer2layer
-
Product NameFR4 PCBA Advanced
-
MaterialFR4
-
Minimum Trace/Space4/4 Mil
-
Copper Thickness70um
-
Surface FinishOSP
-
Solder Mask ColorGreen, Blue, Black, Red, Yellow, White
-
Silkscreen ColorWhite, Black, Yellow
-
Place of OriginChina
-
Brand NameHansion
-
Model NumberFR4 double side PCBA
-
Minimum Order Quantity1
-
Price5
-
Packaging Detailsfoam+custom box
-
Delivery Time3-5days
-
Payment TermsWestern Union,T/T
-
Supply Ability10000PCS per month

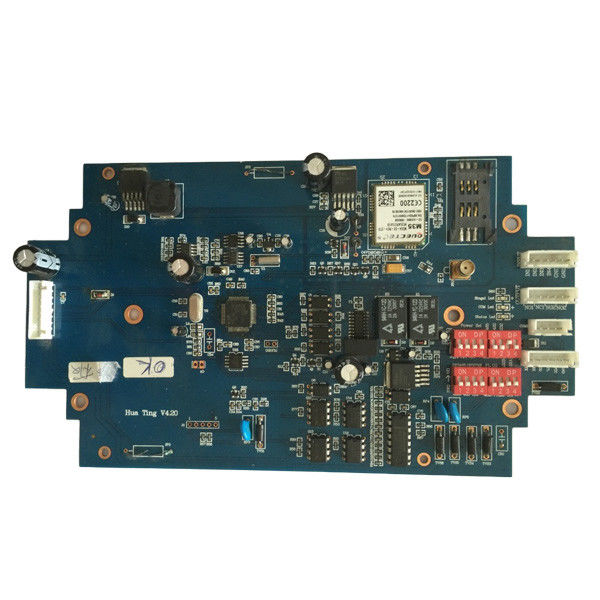

FR4 PCBA Advanced and Affordable Circuit Board for High-Standard Applications
Product Description:
HDI PCB Board is a cutting-edge product designed for high density interconnect technology. It is specially designed to meet the demands of the fast-paced world of consumer electronics, providing reliable and high-speed signal transmission for a variety of devices.
In today's world, miniaturization is key. Consumers demand sleek and compact devices that can still perform at top speeds. HDI PCB Board is the perfect solution for this demand, as it allows for a high number of components to be placed on a smaller board without sacrificing performance.
HDI PCB Board is manufactured using the latest and most advanced technology, ensuring high reliability and quality. With a warpage rate of less than 0.4%, this product guarantees stability and durability even in the most demanding environments.
Features:
- Product Name: HDI PCB Board
- Misalignment of layers: +/- 0.06
- Warpage: ≤0.4%
- Min. Mechanical Drill Hole size: 0.1mm
- Min. Laser Drill Hole size: 0.07mm
- Blind Hole Aspect Ratio: 1:1
- HDI PCB Board
- HDI Consumer Electronics
- HDI Mobile Devices
- HDI High Density Interconnect
Technical Parameters:
| Product Name: | HDI PCB Board |
|---|---|
| Product Type: | HDI Printed Circuit Boards |
| Application: | HDI Consumer Electronics |
| Impedance Control: | ±8% |
| Copper Thickness: | 1/3-8 |
| Max. Board Size: | 540*620 |
| Misalignment of Layers: | +/- 0.06 |
| Warpage: | ≤0.4% |
| Board Thickness: | 0.2-3.2mm |
| Min. Mechanical Drill Hole Size: | 0.1mm |
| Min. Core Thickness: | 0.05mm |
| Min. Line Width/Space: | 0.04mm/ 0.04mm |
| Blind Hole Aspect Ratio: | 1:1 |
Applications:
Brand Name: Hansion
Place of Origin: China
Certification: GJB9001C, ISO13485, ISO9001, IS045001,IATF16949, UL, ISO14001, AS9100D, QC080000
Minimum Order Quantity: 1pcs
Price: By quote
Packaging Details: Vacuum packing
Delivery Time: 2-7days
Payment Terms: By quote
Introduction to HDI PCB Board
HDI PCB Boards find their applications in a wide range of industries, including consumer electronics, automotive, medical, aerospace, and telecommunications. With the increasing demand for small and high-performance electronic devices, HDI PCB boards have become the go-to choice for manufacturers. They are used in devices such as smartphones, tablets, laptops, wearables, and other smart devices.
The telecommunications industry relies heavily on high-speed and reliable electronic devices, and HDI PCB boards are the perfect fit for this industry. These boards are used in various telecommunication devices, including routers, switches, and base stations. With their high-speed capabilities and signal integrity, HDI PCB boards ensure smooth and efficient communication.
Support and Services:
Our goal is to provide comprehensive support and services to help our customers achieve their desired results with our HDI PCB Board. Contact us today to learn more and see how we can assist you.
Our products are sold all over the world, you can rest assured.
