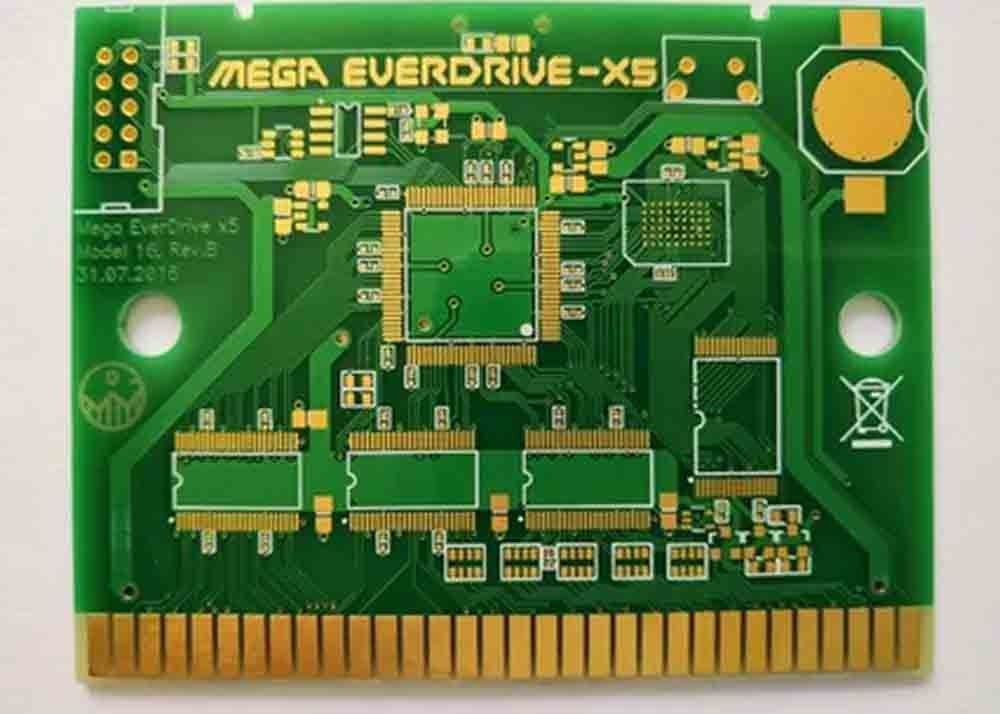

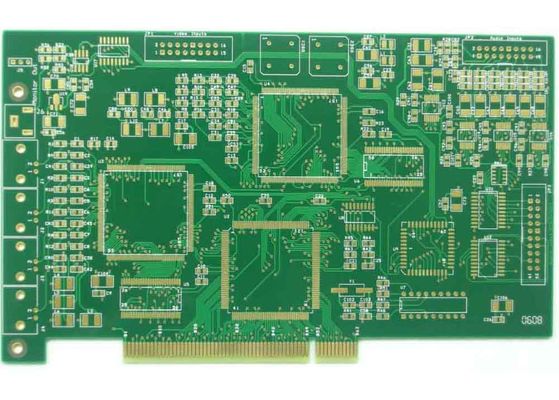

1.6mm 12 Layer PCB Fabrication White Copper Printed Circuit Board OSP

1.6mm 12 Layer PCB Fabrication White Copper Printed Circuit Board OSP

  • High Light

    1.6mm 12 Layer PCB Fabrication

    ,

    Copper Printed Circuit Board 1.6mm

    ,

    12 Layer PCB Fabrication OSP

  • Type
    Combining Rigid Circuit Board
  • Place Of Origin
    Guangdong, China
  • Material
    Fiberglass Epoxy
  • Base Material
    FR4 (Tg130~Tg170)
  • Insulation Materials
    Epoxy Resin
  • Board Thickness
    1.6mm
  • Board Layer
    1-40 Layers
  • Copper Thickness
    1 Oz
  • Solder Mask
    Green
  • Silksreen
    White
  • Surface Finihsing
    OSP
  • Test
    100% AOI Testing,
  • HS Code
    8534009000
  • MOQ
    1PCS
  • Place of Origin
    Guangdong, China
  • Brand Name
    GW-PCBA
  • Certification
    ISO9001/Iso14001/CE/ROHS
  • Model Number
    PCBA-1003
  • Minimum Order Quantity
    1PCS
  • Price
    USD+0.1-0.5+per pcs
  • Packaging Details
    Electrostatic bag packaging, then carton packaging
  • Delivery Time
    PCB 3-7dyas, PCBA 1-3weeks
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    30000 Square Meter/Square Meters per Month module electronic board

1.6mm 12 Layer PCB Fabrication White Copper Printed Circuit Board OSP

OEM Electronic Circuit Board Multilayer , Heavy Copper PCB Board Fabrication PCB

PCB advantages:

  • R&D team support
  • UL, RoHS,ISO9001,SGS
  • IPC class2
  • Advanced production line and promtly delivery.
  • Honest Credibility in China.
  • Professional and abundant experience in PCB
  • Competitive price and good quality.
  • Excellent after-sales service



PCB showcase:

China OEM Electronic Circuit Board Multilayer Heavy Copper PCB Board Fabrication PCB

Applications:

China OEM Electronic Circuit Board Multilayer Heavy Copper PCB Board Fabrication PCB



--------------------------------------------------------------------------------------------------------------------------------------------

Our Services

PCB & PCBA Service:

We provide One-stop service from PCB design, components sourcing, assembly and function test and final production built. We also provide PCB&PCBA clone or copy service.

China OEM Electronic Circuit Board Multilayer Heavy Copper PCB Board Fabrication PCB

1.6mm 12 Layer PCB Fabrication White Copper Printed Circuit Board OSP 3





--------------------------------------------------------------------------------------------------------------------------------------------

Company Information

Global Well Electronic Inc. is a professional PCB solution supplier from Shenzhen, China, integrating PCB circuit board production and processing, STM processing and mounting, PCBA OEM, component purchasing, PCB/PCBA custom design-production- A comprehensive PCB circuit board company with one-stop turnkey service of processing-assembly-finished products. The company has a strong supply chain system, a professional and efficient collaborative team, a sound and complete quality control system, and the business philosophy of honesty and trustworthiness, customer first, and presents the products to everyone with low prices, reliable quality, high-quality service and after-sales service. client.

We provide total PCB solutions from PCB design to final mass production, including PCB fabrication and assembly, component sourcing, solder paste stencils, conformal coatings, and more. Serving the global electronics field, including industrial control, medical electronics, military equipment, power communication, automotive electronics, AI artificial intelligence, smart home and other industries.

1.6mm 12 Layer PCB Fabrication White Copper Printed Circuit Board OSP 4

1.6mm 12 Layer PCB Fabrication White Copper Printed Circuit Board OSP 5

Our factory located in Shenzhen, and have almost 300 employees, more than 30 production lines include SMT, DIP, automatic welding, aging test and assembly. We have SMT machines from Japan and Korea, automatic solder paste printing machines, solder paste inspection machine(SPI)12 temperature zone reflow soldering machine, AOI detector, X-RAY detector, wave soldering machine, EM PCB ,dispenser,laser print machine etc., Different line configurations can meet requirements from small sample order to bulk shipment.

Our company has obtained ISO 9001 quality system certification and ISO 14001 system certification. With multi-testingprocedures, our products carry out the quality system standard strictly.


--------------------------------------------------------------------------------------------------------------------------------------------

Certification
China OEM Electronic Circuit Board Multilayer Heavy Copper PCB Board Fabrication PCB

1.6mm 12 Layer PCB Fabrication White Copper Printed Circuit Board OSP 7

PCB Technical Specification

(1) PCB Technical Specification

Order Quantity 1-300,000,30000 Square Meter/Square Meters per Month module electronic board
Layer 1,2,4,6,upto 40 layer
Material FR-4,glass epoxy,FR4 High Tg,Rohs compliant,Aluminum,Rogers,etc
PCB type Rigid,flexible,rigid-flexible
Shape Any shape: Rectangular,round,slots,cutouts,complex,irregular
Max PCB dimensions 20inch*20inch or 500mm*500mm
Thickness 0.2~4.0mm, Flex 0.01~0.25''
Thickness tolerance ± 10%
Copper thickness 0.5-4 oz
Copper thickness tolerance ± 0.25oz
Surface finish HASL,Nickle,Imm Gold,Imm Tin,Imm Silver,OSP etc
Solder mask Green, red,white,yellow,blue,black, Double-sided
Silk screen White,yellow,black,or negative, Double-sided or single-sided
Silk screen min line width 0.006'' or 0.15mm
Min drill hole diameter 0.01'',0.25mm.or 10 mil
Min trace/gap 0.075mm or 3mil
PCB cutting Shear,V-score,tab-routed

(2) Turnkey PCBA Capabilities

Turnkey PCBA PCB+components sourcing+assembly+package
Assembly details SMT and Thru-hole, ISO lines
Lead Time Prototype: 15 work days. Mass order: 20~25 work days
Testing on products Flying Probe Test, X-ray Inspection, AOI Test, functional test
Quantity Min quantity: 1pcs. Prototype, small order, mass order, all OK
Files we need PCB: Gerber files(CAM, PCB, PCBDOC)
Components: Bill of Materials(BOM list)
Assembly: Pick-N-Place file
PCB panel Size Min size: 0.25*0.25 inches(6*6mm)
Max size: 20*20 inches(500*500mm)
PCB Solder Type Water Soluble Solder Paste, RoHS lead free
Components details Passive Down to 0201 size
BGA and VFBGA
Leadless Chip Carriers/CSP
Double-sided SMT Assembly
Fine Pitch to 0.8mils
BGA Repair and Reball
Part Removal and Replacement
Component package Cut Tape,Tube,Reels,Loose Parts
PCBA process

Drilling-----Exposure-----Plating-----Etaching

Stripping-----Punching-----Electrical Testing-----SMT-----Wave

Soldering-----Assembling-----ICT-----Function Testing-----Temperature - Humidity Testing

Main Equipment:

1.6mm 12 Layer PCB Fabrication White Copper Printed Circuit Board OSP 8

1.6mm 12 Layer PCB Fabrication White Copper Printed Circuit Board OSP 9

1.6mm 12 Layer PCB Fabrication White Copper Printed Circuit Board OSP 10



PCB&PCBA Products Show

1.6mm 12 Layer PCB Fabrication White Copper Printed Circuit Board OSP 11

1.6mm 12 Layer PCB Fabrication White Copper Printed Circuit Board OSP 12

Packaging & Shipping

Packing details:

PCBA are packed into plastic bags. Plastic bags are put into small carton. 4 small carton into a big carton.

A big carton: 35×32×40 cm size.

Shipping Express:

FedEx, DHL, UPS, TNT, EMS, private lines, etc.

Air freight, Sea shipping

1.6mm 12 Layer PCB Fabrication White Copper Printed Circuit Board OSP 13

If you need help on PCB layout, you can contact us and send the board to us. We also provide Reverse Engineering Service.

We have been providing PCB Manufacture for many years in China,and we have rich experience in product production and product assembly.We believe our team will provide high quality and low cost service for you.

Thank you very much for all your support .

Best Regareds.

AFQ:

1, What service could you provide?

We could provide PCB design,PCBA design,PCB printing,PCB assembly,Components procurement,Reverse-Engineer.

2, What is needed for PCB & PCBA quotation?

For PCB: Quantity, Gerber file and technical requirements(material,size, surface finish treatment, copper thickness,board thickness).
For PCBA: PCB information, BOM,Testing documents.

3, How to keep our product information and design file secret ?

We could sign NDA associate by customers side local law for protecting customers confidential business

4, What are the main products of your PCB/PCBA services?

Automotive, Medical, Industry Control, IOT, Smart Home, security equipment,Military, Aerospace.

5, What is your minimum order quantity (MOQ)?

Our MOQ is 1 PCS, sample and mass production all can support.

6, Are you factory?

Our factory is located in No.26,Meiyuan 3rd Road,Intercontinental Industrial Park,Luoyang Town,Boluo County,Huizhou, Guangdong, China.

7.How can we guarantee you receive an good quality product?

For PCB, we will use Flying Probe Test, E-test etc. for it.
For PCBA, we need you to offer us a method or test fixture for the function test.Before that, our inspectors will use microscope and X-ray to check the IC footwelding or bad solder etc.

8.What payment terms do we accept?
For sample order or small batch, we suggest you to use Paypal and Western Union.For mass production batch, we suggest you to use T/T.
