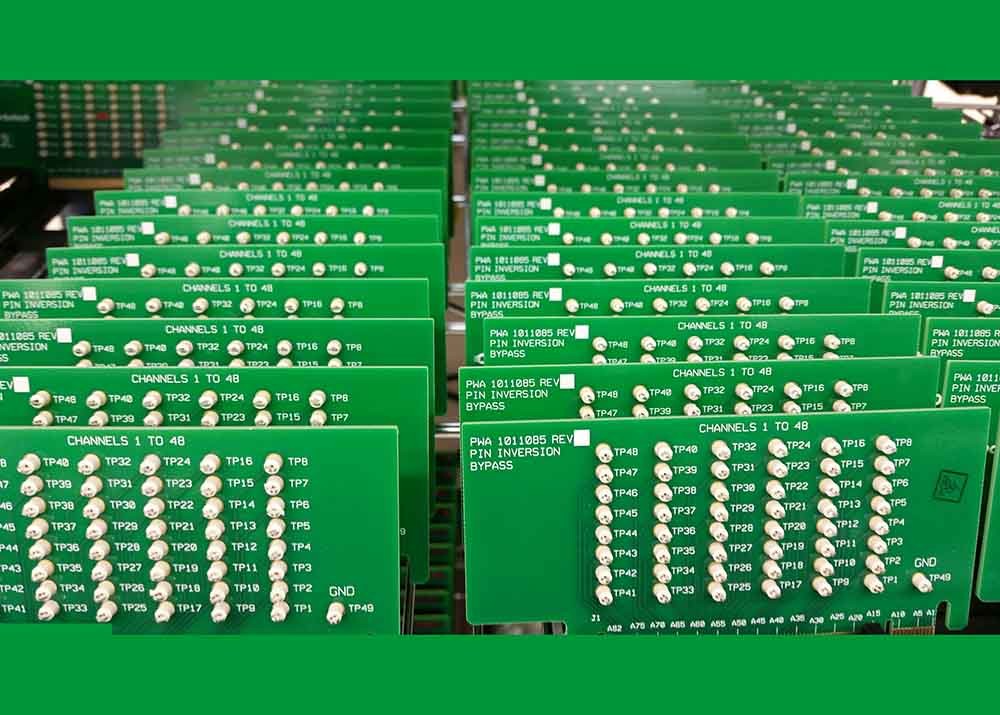

6.35mm PCB Circuit Board Assembly Yellow GW-0182 Electronic PCB Assembly
Our PCB Assembly Capabilities
● SMT Assembly( with AOI inspection);
● BGA Assembly(with X-Ray inspection);
● Through-hole Assembly;
● SMT & Through-hole Mixed Assembly;
● Kit Assembly
● AOI Inspection;
● X-Ray Inspection
● Voltage Test;
● Chip Programming;
● ICT Test; Functional Test
Metal core PCB;
Flex PCB; Rigid-Flex PCB
● Passives, smallest size 0201(inch)
● Fine-pitch chips to 0.38mm
● BGA (0.2mm pitch), FPGA, LGA, DFN, QFN with X-Ray testing
● Connectors and terminals
● Full turnkey (All components sourced by Yingstar);
● Partial turnkey;
|Solder Types||Leaded; Lead-Free(Rohs);
Water soluble solder paste
Files Required for
Quote and Production
● Gerber RS-274X, 274D, or PCB Design file
● BOM (Bill of Materials, .xls, xlsx)
● Pick-N-Place file / XY file (for production only)
● 5pcs to 100,000pcs;
● From Prototypes to Mass Production
|Assembly Lead Time||From 8 hours to 72 hours when parts are ready|
2. Our Services
1. PCB fabrication.
2. Turnkey PCBA: PCB+components sourcing+SMD and through-hole assembly
3. PCB clone, PCB reverse engineering.
PCB or PCBA Files Requests:
1. Gerber files of the bare PCB board
2. BOM (Bill of material) for assembly (please kindly advise us if there is any acceptablecomponents substitution.)
3. Testing Guide & Test Fixtures if necessary
4. Programming files & Programming tool if necessary
5. Schematic if necessary
3. Company Information
Global Well Electronic Inc. is a professional PCB solution supplier from Shenzhen, China, integrating PCB circuit board production and processing, STM processing and mounting, PCBA OEM, component purchasing, PCB/PCBA custom design-production- A comprehensive PCB circuit board company with one-stop turnkey service of processing-assembly-finished products. The company has a strong supply chain system, a professional and efficient collaborative team, a sound and complete quality control system, and the business philosophy of honesty and trustworthiness, customer first, and presents the products to everyone with low prices, reliable quality, high-quality service and after-sales service. client.
We provide total PCB solutions from PCB design to final mass production, including PCB fabrication and assembly, component sourcing, solder paste stencils, conformal coatings, and more. Serving the global electronics field, including industrial control, medical electronics, military equipment, power communication, automotive electronics, AI artificial intelligence, smart home and other industries.
Our factory located in Shenzhen, and have almost 300 employees, more than 30 production lines include SMT, DIP, automatic welding, aging test and assembly. We have SMT machines from Japan and Korea, automatic solder paste printing machines, solder paste inspection machine(SPI)12 temperature zone reflow soldering machine, AOI detector, X-RAY detector, wave soldering machine, EM PCB ,dispenser,laser print machine etc., Different line configurations can meet requirements from small sample order to bulk shipment.
Our company has obtained ISO 9001 quality system certification and ISO 14001 system certification. With multi-testingprocedures, our products carry out the quality system standard strictly.
4. Main Equipment:
5.PCB Technical Specification
(1) PCB Technical Specification
|Order Quantity||1-300,000,30000 Square Meter/Square Meters per Month module electronic board|
|Layer||1,2,4,6,upto 24 layer|
|Material||FR-4,glass epoxy,FR4 High Tg,Rohs compliant,Aluminum,Rogers,etc|
|Shape||Any shape: Rectangular,round,slots,cutouts,complex,irregular|
|Max PCB dimensions||20inch*20inch or 500mm*500mm|
|Thickness||0.2~4.0mm, Flex 0.01~0.25''|
|Thickness tolerance||± 10%|
|Copper thickness||0.5-4 oz|
|Copper thickness tolerance||± 0.25oz|
|Surface finish||HASL,Nickle,Imm Gold,Imm Tin,Imm Silver,OSP etc|
|Solder mask||Green, red,white,yellow,blue,black, Double-sided|
|Silk screen||White,yellow,black,or negative, Double-sided or single-sided|
|Silk screen min line width||0.006'' or 0.15mm|
|Min drill hole diameter||0.01'',0.25mm.or 10 mil|
|Min trace/gap||0.075mm or 3mil|
(2) Turnkey PCBA Capabilities
|Turnkey PCBA||PCB+components sourcing+assembly+package|
|Assembly details||SMT and Thru-hole, ISO lines|
|Lead Time||Prototype: 15 work days. Mass order: 20~25 work days|
|Testing on products||Flying Probe Test, X-ray Inspection, AOI Test, functional test|
|Quantity||Min quantity: 1pcs. Prototype, small order, mass order, all OK|
|Files we need||PCB: Gerber files(CAM, PCB, PCBDOC)|
|Components: Bill of Materials(BOM list)|
|Assembly: Pick-N-Place file|
|PCB panel Size||Min size: 0.25*0.25 inches(6*6mm)|
|Max size: 20*20 inches(500*500mm)|
|PCB Solder Type||Water Soluble Solder Paste, RoHS lead free|
|Components details||Passive Down to 0201 size|
|BGA and VFBGA|
|Leadless Chip Carriers/CSP|
|Double-sided SMT Assembly|
|Fine Pitch to 0.8mils|
|BGA Repair and Reball|
|Part Removal and Replacement|
|Component package||Cut Tape,Tube,Reels,Loose Parts|
Soldering-----Assembling-----ICT-----Function Testing-----Temperature - Humidity Testing
6. PCB&PCBA Products Show
8. Packaging & Shipping
PCBA are packed into plastic bags. Plastic bags are put into small carton. 4 small carton into a big carton.
A big carton: 35×32×40 cm size.
FedEx, DHL, UPS, TNT, EMS, private lines, etc.
Air freight, Sea shipping
If you need help on PCB layout, you can contact us and send the board to us. We also provide Reverse Engineering Service.
We have been providing PCB Manufacture for many years in China,and we have rich experience in product production and product assembly.We believe our team will provide high quality and low cost service for you.
Thank you very much for all your support .
Q: What files do you use in PCBA fabrication?
A: Gerber or Eagle, BOM listing, PNP and Components Position
Q:Is it possible you could offer sample?
A: Yes, we can custom you sample to test before mass production
Q: When will I get the quotation after sent Gerber, BOM and test procedure?
A: Within 6 hours for PCB quotation and around 24 hours for PCBA quotation.
Q: How can I know the process of my PCBA production?
A: 7-10 days for PCB production and components purchasing, and 10 days for PCB assembly and Testing
Q: How can I make sure the quality of my PCBA?
A: We ensure that each piece of PCBA products work well before shipping. We'll test all of them according to your test procedure. Also if there are any defect items during the shipping, we also can be free to repair for you.
