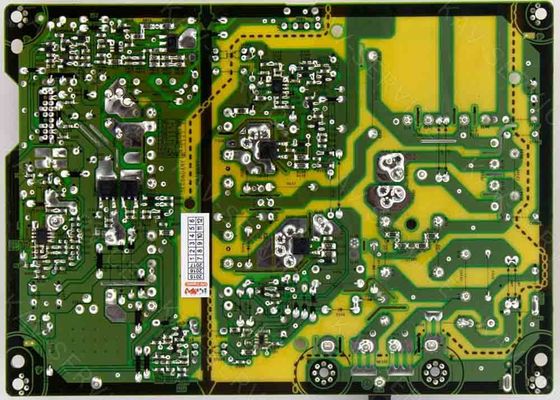

In the current and emerging technologies of today, you need a solution to effectively handles the design challenges of large numbers of constraints, complex placement, and net tuning, high-performance differential pair routing, and HDI / micro-via technology, while optimizing for manufacturing design quality.
An extensive set of constraints to meet high-speed performance requirements is required, whether you’re routing interactively or automatically your High Speed PCB Design. A single constraint management environment needs to be shared between schematic capture and layout, and the use of the context-sensitive constraint editor, embedded directly within the schematic and layout environments, to define constraints at any design stage is a key point to success. Constraints should include same layer and adjacent layer differential pairs, controlled impedance, net scheduling, match groups, complex and custom topologies, pin-pairs and pin-set rules, min/max/match length and delay, Z-axis clearances, and much more. A plus is the possibility to define package to package constraints for 2D or 3D layouts.
An auto-assisted routing can provide the speed and efficiency of auto-routing in High Speed PCB Design, with complete user control and high quality. Starting with a basic sketch of the route, a designer can draw a sketch path to guide the location for the routing of the connections. Then automation can route individual, dozens, or even hundreds of netlines many times faster than manual routing. The focus must be on quality; little cleanup is needed, better if none at all. The high routing completion rate (typically >90%) can be achieved with the ability to automatically optimize the escapes from components like BGAs so they are optimal for routing without any additional vias. A finer routing process can be applied for routing that does not complete to 100%, extracting the design intent using existing routing to create a local bias to automate the routing process.
This approach allows the designer to develop an optimized routing strategy using sketch plans. These plans can be manipulated like regular traces and contain the same functionality just described.
A real trace plow routing automation can be very useful to guide the routing with dynamic visual feedback while pushing and shoving vias and traces out of the way, and even clearing plane areas as you route. Additional controls should be considered to allow the user to add design tolerances to aid in higher board fabrication yields. When there is a large set of routes that need to be moved, even across rule areas, a dynamic editing capability enables smooth and fast movement of traces while it automatically removes extra segments and maintains high quality. Additionally, in non-symmetric pad arrays where 45-degree routing is prevented, it is necessary to route between pads at odd angles and around pads with curves to escape the most challenging BGA patterns.
Multiple methods of tuning traces in your design are provided to decrease routing schedules. Automatic tuning can provide the user with the power to open up dense areas of a board to add length to traces where needed. Nets can also be tuned within an autoroute pass, or automatically based on selection to meet length and electrical rules that may also include package lengths and via delay/ lengths. Additionally, automatic phase or saw-tooth tuning of differential pairs is accomplished using the timing constraints.
Once constraints are met, automatic tuning should keep nets tuned even during push and shove operations. While routing interactively, graphic tuning aids can be displayed for guidance, and routes can be automatically tuned as connections are completed. Advanced auto-assisted tuning can let the designer be more interactive and control to precisely add length to meet the most complex constraint definitions. A Dynamic Hazards function should be available to updates as the operator edits nets, providing instant feedback relative to your constraints.
To successfully approach High Speed PCB Design, routing and editing differential pairs must be accomplished with speed and ease, changing the standard view of high-speed design. Impedances must be easily controlled by layer and pair-spacing rules. If one trace is edited, the other trace in the pair should automatically move with it.
Routing differential pairs through staggered pins or dense areas must be easily accomplished using curved and any angle traces. Pad entry and via control should be automated to provide for symmetric pad entry with short convergence. Broadside or adjacent layer differential pair routing capabilities can add another valuable option for routing critical signals on a dense PCB.
In a word, learning about high speed PCB design is leaning about a different engineering filed. Although there are a lot of factors you need to take into consideration when working on a high speed design. Luckily, your CAD software for PCB design will give a hand to you, such as impedance calculators, trace length reporting options, differential pair routers, as well as other tools.
1. PCB fabrication.
2. Turnkey PCBA: PCB+components sourcing+SMD and through-hole assembly
Global Well Electronic Inc. is a professional PCB solution supplier from Shenzhen, China, integrating PCB circuit board production and processing, STM processing and mounting, PCBA OEM, component purchasing, PCB/PCBA custom design-production- A comprehensive PCB circuit board company with one-stop turnkey service of processing-assembly-finished products. The company has a strong supply chain system, a professional and efficient collaborative team, a sound and complete quality control system, and the business philosophy of honesty and trustworthiness, customer first, and presents the products to everyone with low prices, reliable quality, high-quality service and after-sales service. client.
We provide total PCB solutions from PCB design to final mass production, including PCB fabrication and assembly, component sourcing, solder paste stencils, conformal coatings, and more. Serving the global electronics field, including industrial control, medical electronics, military equipment, power communication, automotive electronics, AI artificial intelligence, smart home and other industries.
Our factory located in Shenzhen, and have almost 300
employees, more than 30 production lines include SMT, DIP, automatic welding, aging test and assembly. We have SMT machines from Japan and Korea, automatic solder paste printing machines, solder paste inspection machine(SPI)12 temperature zone reflow soldering machine, AOI detector, X-RAY detector, wave soldering machine, EM PCB ,dispenser,laser print machine etc., Different line configurations can meet requirements from small sample order to bulk shipment.
Our company has obtained ISO 9001 quality system certification and ISO 14001 system certification. With multi-testingprocedures, our products carry out the quality system standard strictly.
| Order Quantity | 1-300,000,30000 Square Meter/Square Meters per Month module electronic board |
| Layer | 1,2,4,6,upto 24 layer |
| Material | FR-4,glass epoxy,FR4 High Tg,Rohs compliant,Aluminum,Rogers,etc |
| PCB type | Rigid,flexible,rigid-flexible |
| Shape | Any shape: Rectangular,round,slots,cutouts,complex,irregular |
| Max PCB dimensions | 20inch*20inch or 500mm*500mm |
| Thickness | 0.2~4.0mm, Flex 0.01~0.25'' |
| Thickness tolerance | ± 10% |
| Copper thickness | 0.5-4 oz |
| Copper thickness tolerance | ± 0.25oz |
| Surface finish | HASL,Nickle,Imm Gold,Imm Tin,Imm Silver,OSP etc |
| Solder mask | Green, red,white,yellow,blue,black, Double-sided |
| Silk screen | White,yellow,black,or negative, Double-sided or single-sided |
| Silk screen min line width | 0.006'' or 0.15mm |
| Min drill hole diameter | 0.01'',0.25mm.or 10 mil |
| Min trace/gap | 0.075mm or 3mil |
| PCB cutting | Shear,V-score,tab-routed |
| Turnkey PCBA | PCB+components sourcing+assembly+package |
| Assembly details | SMT and Thru-hole, ISO lines |
| Lead Time | Prototype: 15 work days. Mass order: 20~25 work days |
| Testing on products | Flying Probe Test, X-ray Inspection, AOI Test, functional test |
| Quantity | Min quantity: 1pcs. Prototype, small order, mass order, all OK |
| Files we need | PCB: Gerber files(CAM, PCB, PCBDOC) |
| Components: Bill of Materials(BOM list) | |
| Assembly: Pick-N-Place file | |
| PCB panel Size | Min size: 0.25*0.25 inches(6*6mm) |
| Max size: 20*20 inches(500*500mm) | |
| PCB Solder Type | Water Soluble Solder Paste, RoHS lead free |
| Components details | Passive Down to 0201 size |
| BGA and VFBGA | |
| Leadless Chip Carriers/CSP | |
| Double-sided SMT Assembly | |
| Fine Pitch to 0.8mils | |
| BGA Repair and Reball | |
| Part Removal and Replacement | |
| Component package | Cut Tape,Tube,Reels,Loose Parts |
| PCBA process |
Drilling-----Exposure-----Plating-----Etaching Stripping-----Punching-----Electrical Testing-----SMT-----Wave Soldering-----Assembling-----ICT-----Function Testing-----Temperature - Humidity Testing |
Packing details:
PCBA are packed into plastic bags. Plastic bags are put into small carton. 4 small carton into a big carton.
A big carton: 35×32×40 cm size.
Shipping Express:
FedEx, DHL, UPS, TNT, EMS, private lines, etc.
Air freight, Sea shipping
If you need help on PCB layout, you can contact us and send the board to us. We also provide Reverse Engineering Service.
We have been providing PCB Manufacture for many years in China,and we have rich experience in product production and product assembly.We believe our team will provide high quality and low cost service for you.
Thank you very much for all your support .
Best Regareds.
1. Gerber files of the bare PCB board
2. BOM (Bill of material) for assembly (please kindly advise us if there is any acceptablecomponents substitution.)
3. Testing Guide & Test Fixtures if necessary
4. Programming files & Programming tool if necessary
5. Schematic if necessary
A: Gerber or Eagle, BOM listing, PNP and Components Position
A: Yes, we can custom you sample to test before mass production
A: Within 6 hours for PCB quotation and around 24 hours for PCBA quotation.
A: 7-10 days for PCB production and components purchasing, and 10 days for PCB assembly and Testing
