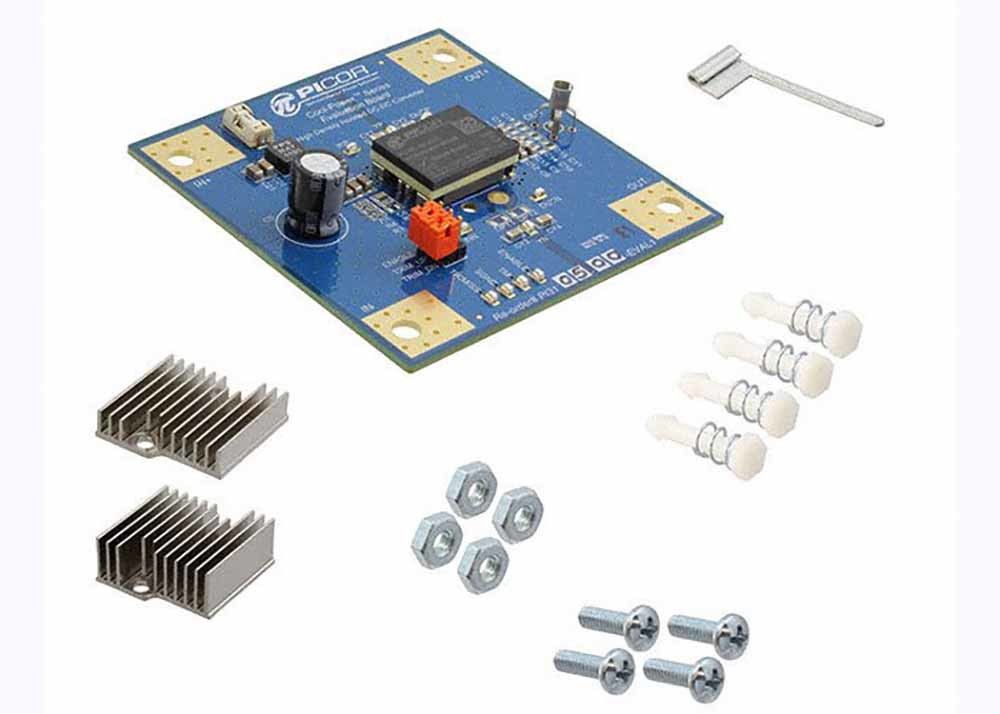

1-40 Layers Circuit Board PCB PCBA SMT Assembly With Original Components
Product details
Within every single electronic device used today, there’s a printed circuit board (PCB) that makes it operate. The PCB is the heart of electronic devices, whether we’re talking about smart speakers for the home, your new intelligent thermostat, or the digital speedometer in your car. Of course, creating functional electronic devices requires much more than just throwing together a bunch of components and resistors.
The PCB assembly process is critical to get right the first time. A single misstep here could result in malfunctions, lack of functionality, or even the threat of accidents. In this post, we’ll cover some of the most important PCB assembly process steps and what you should know.
Project
|
Lay
|
quantity
|
Delivery Time
|
Other introduction
|
PCB Design
|
2-4L
|
/
|
1--4Days
|
PCB Layout, PCB Clone,BOM List,SCH, Design for 2-28 Lay medical,automotive,satellite,Army equipment,WIFI,cable net,Fibre,GPS,DVB,consumer audio/Video etc.
|
4-8L
|
/
|
2-6Days
|
||
10-28L
|
/
|
4-15Days
|
||
PCB Assembly
|
2-6L
|
≤10
|
2-4 Days
|
Professional production and processing, electronic equipment, medical equipment, industrial control, instrumentation, automotive electronics, consumer electronics products OEM, ODM processing
|
≥100
|
4-12 Days
|
|||
8-28L
|
≤10
|
8-16 Days
|
||
≥100
|
12-40 Days
|
|||
PCB
|
2-4L
|
≤10
|
1-4 Days
|
1-28 layers PCB production with 0.5-10 OZ,FR4,HI-TG,FR06,Rogers,Taconic,Argon,Nalco,Isola etc .2mil track and 0.1mm via capability, used to medical,automotive,satellite,Army equipment,WIFI,cable net,Fibre,GPS,DVB,consumer audio/Video etc.
|
1- how are circuit boards made:
The PCBs are the majority of PCBs we see all around us in various types of devices. These are hard, rigid and solid PCBs with various thickness. The main material is the fiber glass or simple “FR4”. FR4 means “Fire Retardant – 4”. The self extinguishing property of FR-4 makes it favorable for use in many hard core industrial electronic devices. The two sides of FR-4 is laminated with thin layer of copper foil also known as copper clad laminates. Main applications where FR-4 copper clad laminates are sued in are power amplifier, switch mode power supplies, servo motor drives etc. On the other hand another type of rigid PCB circuit prototype substrate commonly used in home appliances and IT products is known as Paper Phenolic PCB. They are light weight, low density, cheap and easy to punch process. Calculators, keyboards, and mouse are some of its applications.
Company Information
Global Well Electronic Inc. is a professional PCB solution supplier from Shenzhen, China, integrating PCB circuit board production and processing, STM processing and mounting, PCBA OEM, component purchasing, PCB/PCBA custom design-production- A comprehensive PCB circuit board company with one-stop turnkey service of processing-assembly-finished products. The company has a strong supply chain system, a professional and efficient collaborative team, a sound and complete quality control system, and the business philosophy of honesty and trustworthiness, customer first, and presents the products to everyone with low prices, reliable quality, high-quality service and after-sales service. client.
We provide total PCB solutions from PCB design to final mass production, including PCB fabrication and assembly, component sourcing, solder paste stencils, conformal coatings, and more. Serving the global electronics field, including industrial control, medical electronics, military equipment, power communication, automotive electronics, AI artificial intelligence, smart home and other industries.
Our factory located in Shenzhen, and have almost 300
employees, more than 30 production lines include SMT, DIP, automatic welding, aging test and assembly. We have SMT machines from Japan and Korea, automatic solder paste printing machines, solder paste inspection machine(SPI)12 temperature zone reflow soldering machine, AOI detector, X-RAY detector, wave soldering machine, EM PCB ,dispenser,laser print machine etc., Different line configurations can meet requirements from small sample order to bulk shipment.
Our company has obtained ISO 9001 quality system certification and ISO 14001 system certification. With multi-testingprocedures, our products carry out the quality system standard strictly.
Main Equipment:
PCB Technical Specification
(1) PCB Technical Specification
Order Quantity | 1-300,000,30000 Square Meter/Square Meters per Month module electronic board |
Layer | 1,2,4,6,upto 24 layer |
Material | FR-4,glass epoxy,FR4 High Tg,Rohs compliant,Aluminum,Rogers,etc |
PCB type | Rigid,flexible,rigid-flexible |
Shape | Any shape: Rectangular,round,slots,cutouts,complex,irregular |
Max PCB dimensions | 20inch*20inch or 500mm*500mm |
Thickness | 0.2~4.0mm, Flex 0.01~0.25'' |
Thickness tolerance | ± 10% |
Copper thickness | 0.5-4 oz |
Copper thickness tolerance | ± 0.25oz |
Surface finish | HASL,Nickle,Imm Gold,Imm Tin,Imm Silver,OSP etc |
Solder mask | Green, red,white,yellow,blue,black, Double-sided |
Silk screen | White,yellow,black,or negative, Double-sided or single-sided |
Silk screen min line width | 0.006'' or 0.15mm |
Min drill hole diameter | 0.01'',0.25mm.or 10 mil |
Min trace/gap | 0.075mm or 3mil |
PCB cutting | Shear,V-score,tab-routed |
(2) Turnkey PCBA Capabilities
Turnkey PCBA | PCB+components sourcing+assembly+package |
Assembly details | SMT and Thru-hole, ISO lines |
Lead Time | Prototype: 15 work days. Mass order: 20~25 work days |
Testing on products | Flying Probe Test, X-ray Inspection, AOI Test, functional test |
Quantity | Min quantity: 1pcs. Prototype, small order, mass order, all OK |
Files we need | PCB: Gerber files(CAM, PCB, PCBDOC) |
Components: Bill of Materials(BOM list) | |
Assembly: Pick-N-Place file | |
PCB panel Size | Min size: 0.25*0.25 inches(6*6mm) |
Max size: 20*20 inches(500*500mm) | |
PCB Solder Type | Water Soluble Solder Paste, RoHS lead free |
Components details | Passive Down to 0201 size |
BGA and VFBGA | |
Leadless Chip Carriers/CSP | |
Double-sided SMT Assembly | |
Fine Pitch to 0.8mils | |
BGA Repair and Reball | |
Part Removal and Replacement | |
Component package | Cut Tape,Tube,Reels,Loose Parts |
PCBA process |
Drilling-----Exposure-----Plating-----Etaching Stripping-----Punching-----Electrical Testing-----SMT-----Wave Soldering-----Assembling-----ICT-----Function Testing-----Temperature - Humidity Testing |
PCB&PCBA Products Show
Certifications
Packaging & Shipping
Packing details:
PCBA are packed into plastic bags. Plastic bags are put into small carton. 4 small carton into a big carton.
A big carton: 35×32×40 cm size.
Shipping Express:
FedEx, DHL, UPS, TNT, EMS, private lines, etc.
Air freight, Sea shipping
If you need help on PCB layout, you can contact us and send the board to us. We also provide Reverse Engineering Service.
We have been providing PCB Manufacture for many years in China,and we have rich experience in product production and product assembly.We believe our team will provide high quality and low cost service for you.
Thank you very much for all your support .
Best Regareds.
FAQ
Q: What is needed for PCB/PCBA quotation?
A: For Bare PCB project, please provide Quantity, Gerber file and specification like material, surface finish treatment, copper thickness, board thickness, soldermask color and silkscreen color and other special specs. For PCBA project, please provide above information as well, and BOM list, pick and place file. If you need turnkey service include programming and functional testing etc, kindly contact us for more details.
Q: Are my files safe?
A: Your files are held in complete safety and security.We protect the intellectual property for our customers in the whole
process.. All documents from customers are never shared with any third parties. We are willing to sign NDA effect by customer side local law and promising to keep customers data in high confidential level.
Q: What’s your minimum of quantity(MOQ) ?
A: There is no MOQ.We are able to handle small as well as large volume production with flexibility.
